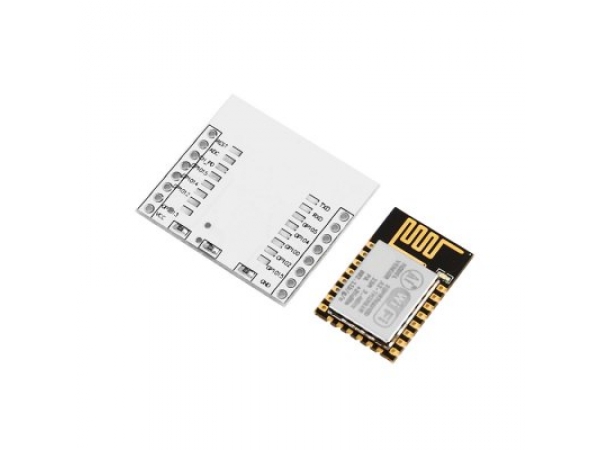

ESP8266 Adapter Board with Headers

ESP8266 ADAPTER BOARD WITH HEADERS

PKR 60

ESP8266 Adapter Board with Headers

Stock: In-Stock

Quantity

Description

ESP8266 Adapter Board size is 31 x 28 x 3 mm.
2.54mm pitch breadboard friendly.
It is easy to solder.
There is no need to connect an external resistor between VCC and Chip enable.
Its weight is 4 grams.
The thickness of the PCB is 1.6mm.
The PCB color is white.
On the top layer of PCB is in black color.
10K pull-up resistor is populated on the PCB board.
It is compatible with the latest ESP-12F ES8266 Wifi Module.
On the bottom layer, there is a land-pattern for a 3.3V regulator.
To use a 3.3V regulator you will need to desolder 0-ohm jumper resistor R1.
The VCC pin then becomes 4.5V to 9V power input.
