Integrated image collecting and algorithm chip together, ALL-in-One
The fingerprint reader can conduct secondary development, can be embedded into a variety of end products
Low power consumption, low cost, small size, excellent performance
Professional optical technology, precise module manufacturing techniques
Good image processing capabilities can successfully capture the image up to resolution 500 dpi
Specifications
Fingerprint sensor type: Optical
Sensor Life: 100 million times
Static indicators: 15KVBacklight: bright green
Interface: USB1.1/UART(TTL logical level)
RS232 communication baud rate: 4800BPS~115200BPS changeable
Dimension: 55*32*21.5mm
Image Capture Surface 15—18(mm)
Verification Speed: 0.3 sec
Scanning Speed: 0.5 sec
Character file size: 256 bytes
Template size: 512 bytes
Storage capacity: 250
Security level: 5 (1,2,3,4,5(highest))
False Acceptance Rate (FAR) :0.0001%
False Rejection Rate (FRR): 0.1%
Resolution 500 DPI
Voltage :3.6-6.0 VDC
Working current: Typical 90 mA, Peak 150mA
Matching Method: 1: N
Operating Environment Temperature: -20 to 45° centigrades

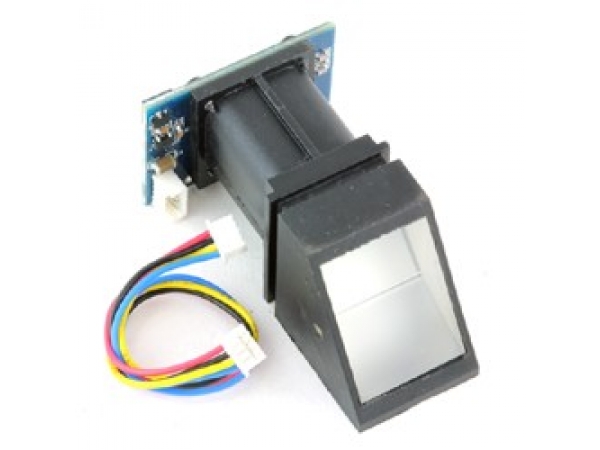

Features of R305 Finger Print Module: r> Basic Power: 8-12v AC/DC.
Interface: RS232.
Matching Mode: 1:1 and 1:N.
Baud rate: 9600 – 115200. Default: 57600.
Storage Capacity: 256.
Average Search Time: < 1sec.
Image Acquire Time: <0.5sec.
Applications of R305 Finger Print Module:
Access control system.
Attendance system.
Safety deposit box system.
Car door locking system.
Optical biometric fingerprint reader with great features and can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks.
Features
Integrated image collecting and algorithm chip together, ALL-in-One Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
Low power consumption, low cost, small size, excellent performance Professional optical technology, precise module manufacturing techniques Good image processing capabilities can successfully capture image up to resolution 500 dpi
